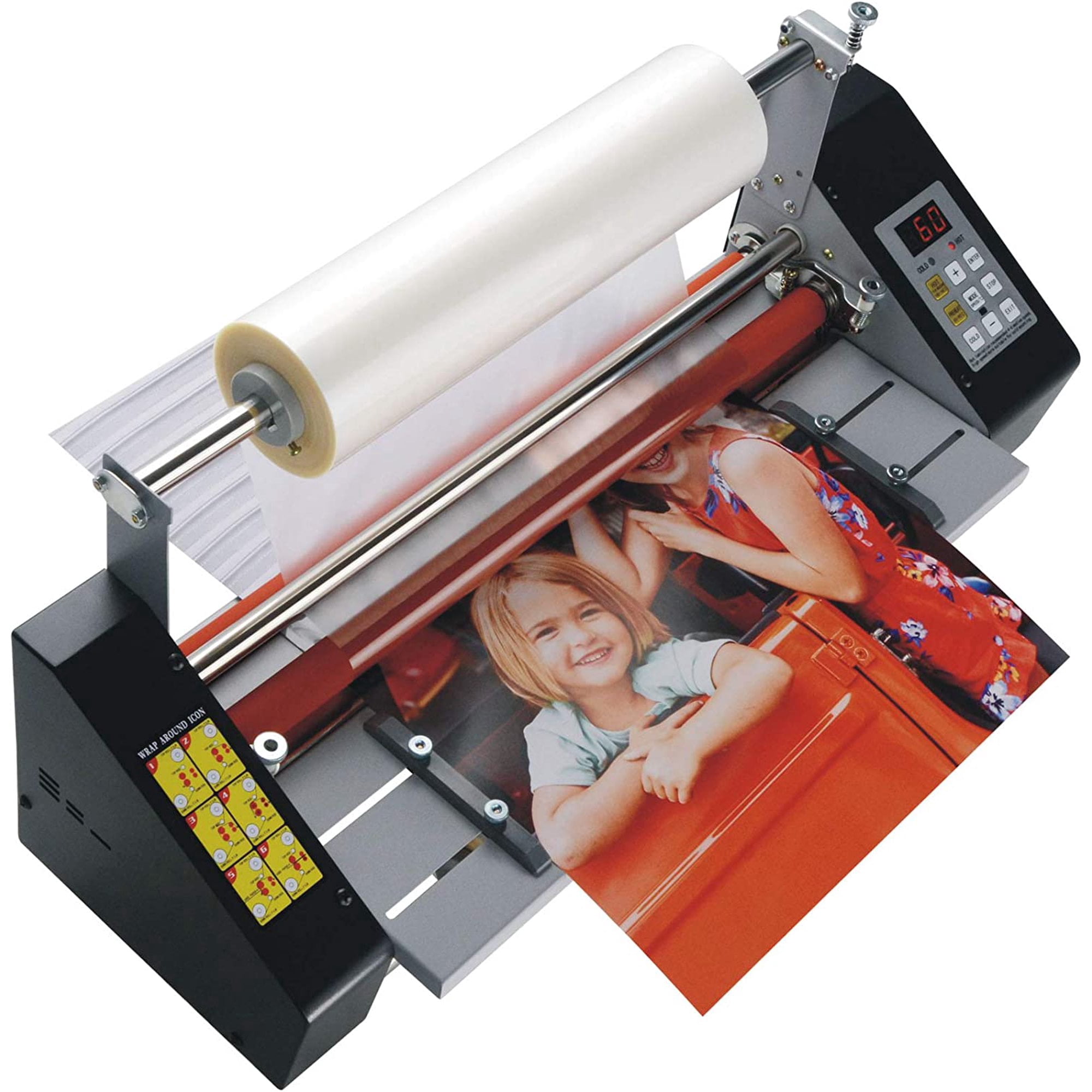

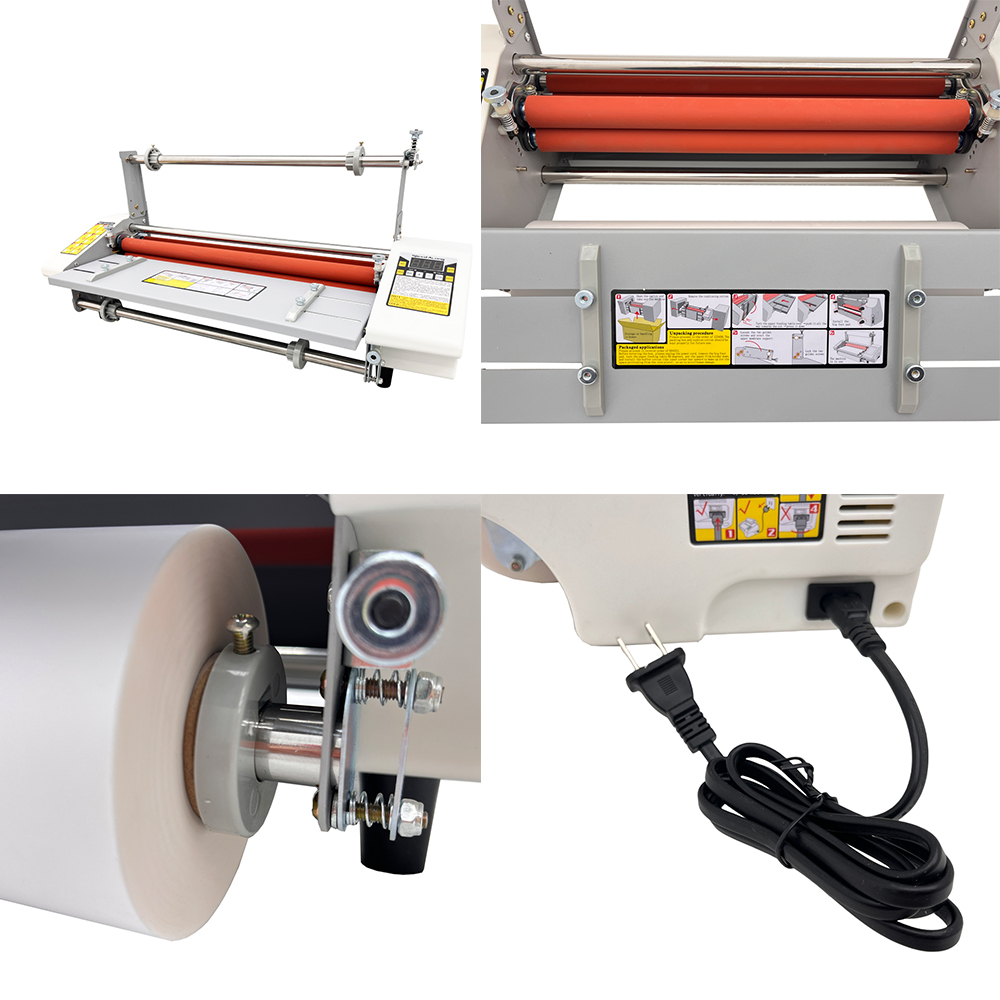

Techtongda A2 Hot Cold Roll Laminator Doubel Side Thermal Laminator Laminating Machine

Description:<br> Small automatic laminating machine can protect printing charts, contracts and important documents, improve the grade,waterproof, mildew proof, anti oxidation,tamper proof and scrubbable. It is a common tool for office printing,advertising graphics and photo studio. With the progress of technology,the function of small film machine is constantly improved, and it has been expanded to plate film,mobile phone case film, paper art To increase revenue.<br> <br> Parameter:<br> Film covering width:A2+/44cm(Length customization)<br> Paperboard thickness:0.1-5mm(With stepless clutch)<br> Film mulching speed:0.3-3M/minute(Nine speed transmission)<br> Power supply:110V/60hz(Total power 600W)<br> Temperature:0-180°C(Preheating is only 3 minutes)<br> Main engine weight:About 7kg<br> <br> Features:<br> The system judges automatically. If manual violation is found, the system rejects unreasonable instructions, takes over the machine, enters the full-automatic mode, and intelligently controls to prevent burning.<br> <br> One key quick control panel:<br> 1.Click the "HOT" key: automatically preheat, sound prompt and constant temperature, and call again.<br> 2.When the motor is stationary, if the temperature regulation exceeds the safety limit, the system identifies violations and intelligently controls them, which is very safe.<br> 3.Click the "COLD" key: cut off the heat source and enter the cold mounting or cooling mode. The operation is simple.<br> 4.Point(EXIT) key:free hands and prevent mistakes.<br> Sound warning: duty free preheating, sound prompt;<br> Fault warning and automatic shutdown;<br> No response warning for timeout;<br> If you forget to shut down, the system will shut down automatically;<br> Easy and safe operation.<br> <br> Note: This product does not contain precoating film.<br> <br> Hot mounting/cold mounting; single/double side:<br> Cold installation and hot installation are both "laminated" based on different classifications of laminated consumables. Therefore, the so-called lamination includes hot lamination and cold lamination. Our small film machine not only supports the precoating of hot paste consumables BOPP and pet hot-melt adhesive, but also supports various cold paste films, self-adhesive and self-adhesive materials. Small film machine except one side of the film. It can also be hot installed on both sides at the same time. Users should flexibly use these two consumables according to customer requirements and product compatibility characteristics. If some printing substrates do not support high temperature, cold mounting film can be used to complete the lamination operation.<br> <br> Item included(120156):<br> TECHTONGDA A2 High Speed Hot Cold Roll Laminator Doubel Side Thermal Laminator Laminating Machine with 0-180°C Adjusted 2 Rollers Film

• Double sided lamination This hot cold roll laminator can ues BOPP film or crystal film,when the film is placed at the upper and lower positions, and then double-sided lamination can be completed at one time.
• Automatic error correction The system will judge automatically. If it finds that the system refuses unreasonable instructions, it will take over the machine and enter the full-automatic mode. The intelligent control will prevent the machine from burning.
• Highlight digital display The temperature, speed, mode of the Laminator are highlighted digital display, whether natural soft light, direct sunlight, or night, can be displayed very clearly.

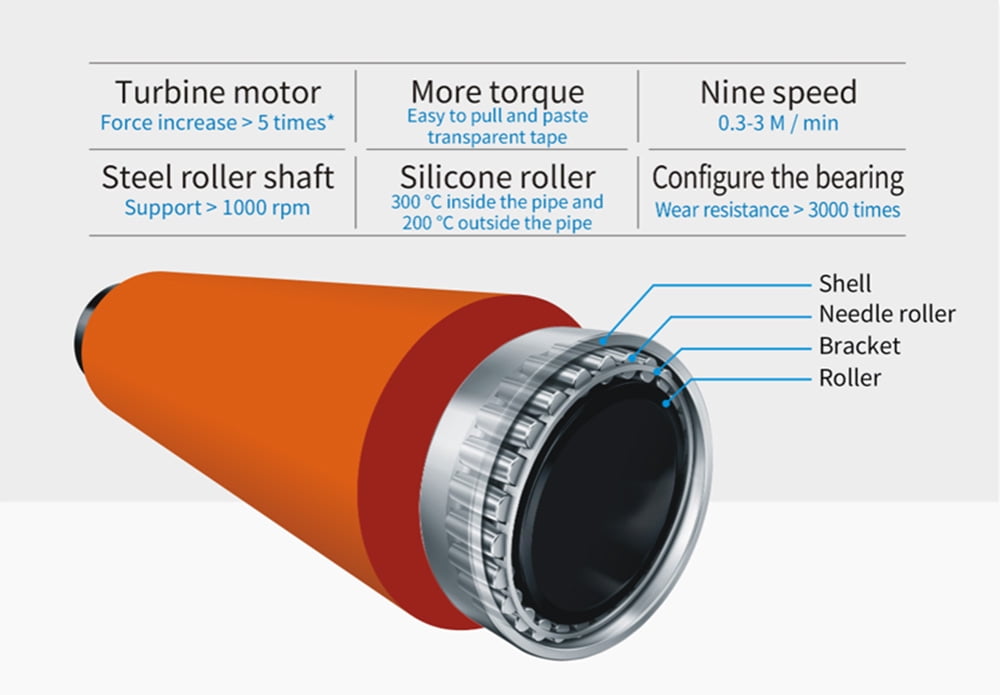

• Rubber roller When the laminating machine is working, the cots run continuously. There is no direct friction between the rubber roller shaft and the shaft sleeve, almost no wear, and the service life is longer.

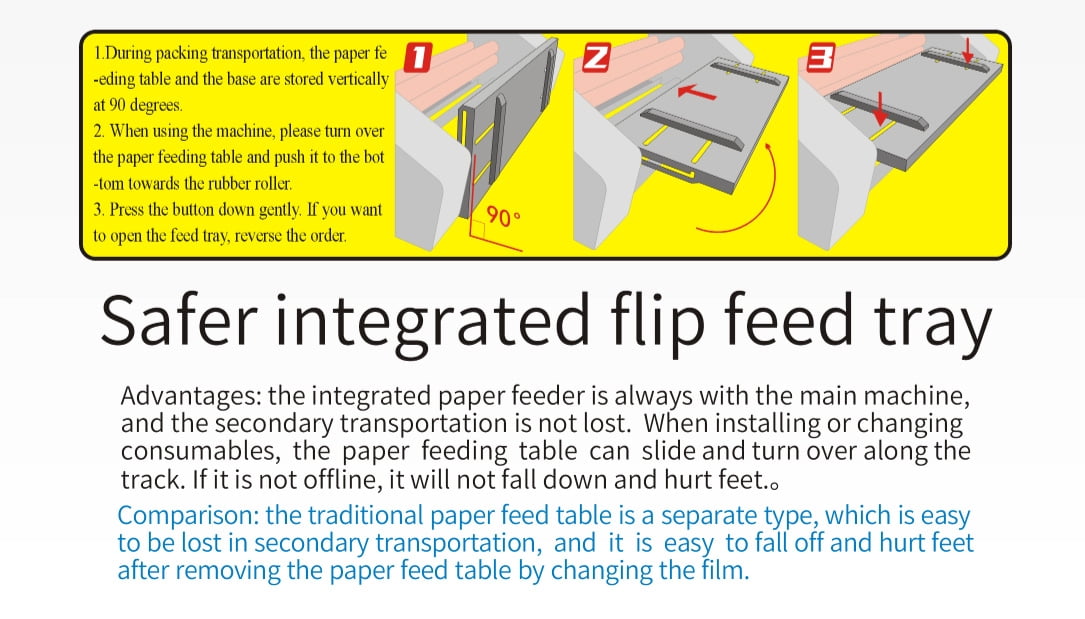

• Integrated flip feed table This doubel side thermal laminator uses a connected paper feeder, always with the host, not easy to lose. When installing or changing consumables, the platform can slide and turn over along the track, without removing and falling.
