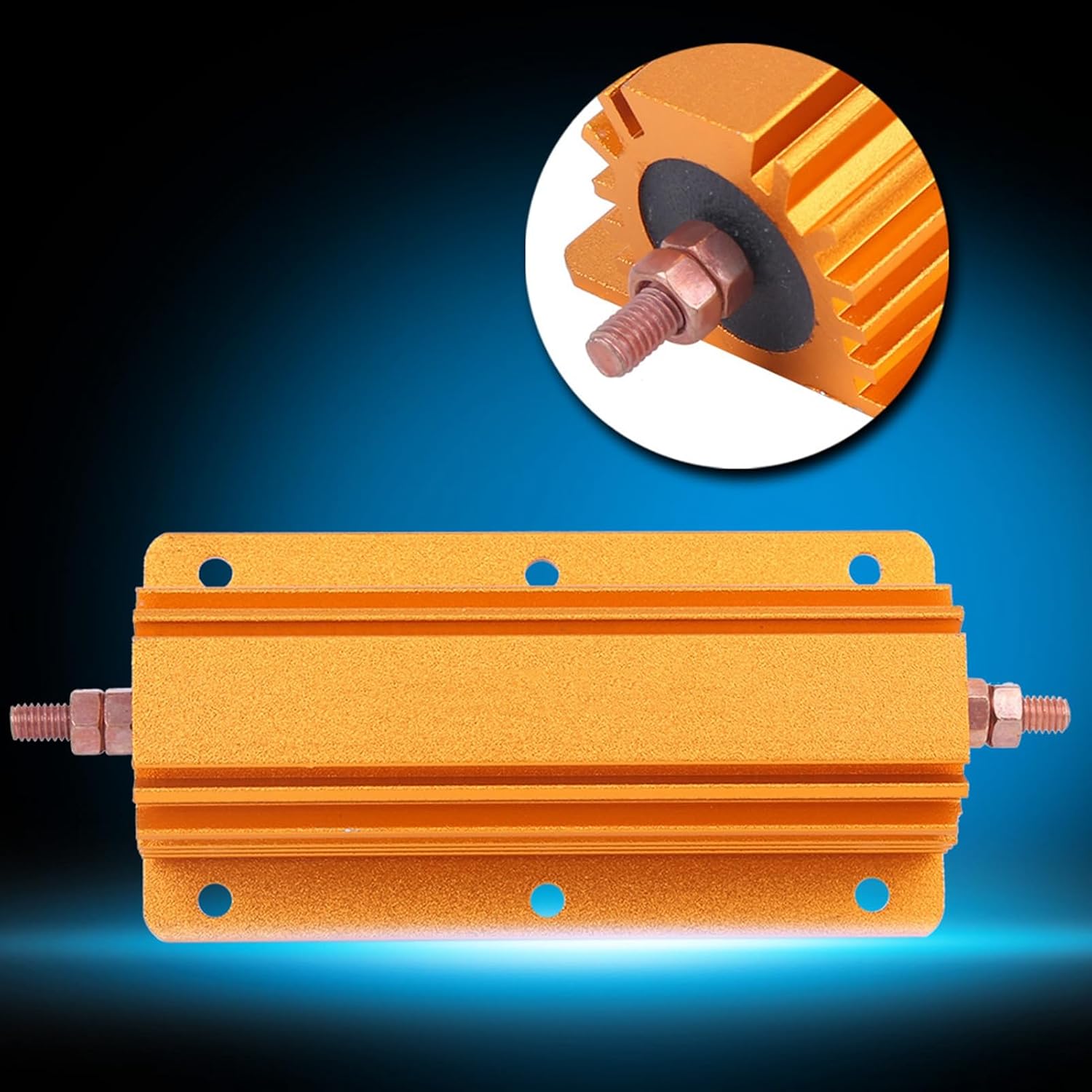

Rx24 Aluminum Case Resistor, Capacitor Discharge Tool, Dump Load Resistor for Power Supply Sensor, Wirewound Resistors, 200W

Item Type: ResistorExternal Material: AluminumColor: GoldValue: 1RRated Power: 200WEndurance: ±5% (J)Mounting Hole Diameter: Approx. 4.2mm / 0.2inHole to Hole Distance: Approx. 41.5mm / 1.6in, 37.5mm / 1.5inBoard Size (L x W x H): Approx. 100 x 52 x 29 mm / 3.9 x 2 x 1.1 inBody Size (L x D): Approx. 100 x 32 mm / 3.9 x 1.3 inType 25℃ Rated Power (W) RES. Ranges (Q) TCR (10/℃) RES. Error (%) Withstand Voltage (V) With Cooling Plate Without Cooling Plate Rx24 5 3 0.01~1K ±50±100±250 ±1 (F)±2 (G)±5 (J) 2000 10 8 0.01~1.5K 25 12.5 0.01~10K 30 15 0.01~27K 50 20 0.01~33K 75 45 0.01~39K 2500 100 50 0.01~51K 150 55 0.01~56K 100 50 0.01~62K 200 100 0.01~56K 250 120 0.01~75K 300 150 0.01~75K 500 200 0.01~82K Test Item Specifications Test Method SJ1330-78 Solderability Solder flows freely and lead wet 235±5℃, 2s precise welding method Terminal Tensile Strength R ±(1%R+0.05Ω) 40N Overload R ±(1%R+0.05Ω) 5P, 5s Temperature R ±(1%R+0.05Ω) -55℃~+155℃, 5 Cycles Sold Heat R ±(1%R+0.05Ω) 350±10℃, 3.5±.5s Shook R ±(1%R+0.05Ω) Acceleration 490m/s², 11ms, 18 times Vibratious R ±(1%R+0.05Ω) Frequency 10-50Hz, acceleration 90m/s², 6h outside Temperature Rise 275℃ VR Dampheat, Steady State R ±(5%R+0.05Ω) Temperature 40±2℃, humidity 93+2-3%, 21 days Load Life R ±(5%R+0.05Ω) 1000h rated power load applied at room temperaturePackage List：1 x RX24 200W 1R ResistorNote:1. Please allow 0-1 cm error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

• GOOD-PERFORMANCE APPLICATION: Gold aluminum shell resistor with 200W rating for capacitor discharge tools, power supplies, sensors, and stage audio systems
• DUMP LOAD SOLUTION: Aluminum core with 1 ohm handles 200W continuous load, featuring 4.2mm/0.17in mounting holes (41.5mm/1.63in & 37.5mm/1.48in spacing) for secure heat sink/chassis installation
• THERMAL MANAGEMENT: 100x32mm/3.94x1.26in compact body with optimized 100x52x29mm/3.94x2.05x1.14in board design enhances heat dissipation for resistor durability in extended work
• INDUSTRIAL-GRADE CONSTRUCTION: Gold-anodized aluminum housing resistors withstand industrial environments for power electronics and heavy-duty equipment applications
• HIGH-POWER RESISTOR: RX24 200W 1R
