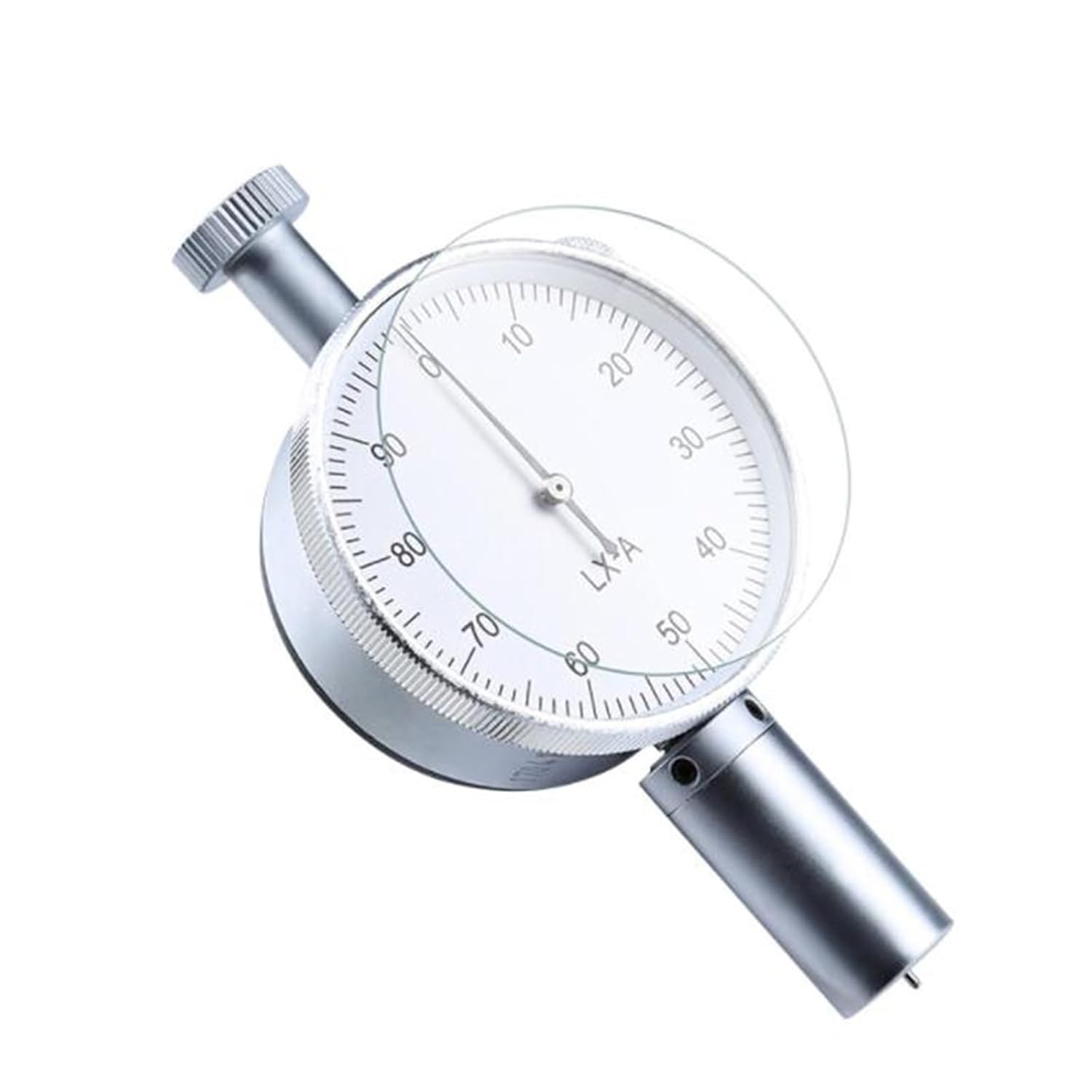

Hardness Tester, Dial Shore Hardness Tester Durometer 0-100HC LCD Shore A/C/D Penetrometer Sclerometer For Plastic Leather Rubber Multi-resin,Excellent Portability(A)

Three measuring heads can measure different materials Penetration Shape: Type A Measuring head: flat tapered tip (0.8mm), 35° included angle Range: 0-100HA Resolution: 0.5HA Fabric indenting press: 0.55 N-8.06 N Types A and D respectively are applicable to the testing of low, medium and high hardness materials. Penetration Shape: Type-C Measuring head: 2.5mm spherical Range: 0-100HC Resolution: 0.5 HC Fabric indenting press: 0.55 N-8.06 N It is suitable for measuring foam, sponge, shoes with built-in material, etc. Penetration shape: D-type Measuring head: sharp tapered tip (SR0.1mm), 30° included angle Range: 0-100HD Resolution: 0.5HD. Indenting press in telos:O-44.5N It is suitable for measuring hard rubber and plastics such as thermoplastics, floors and bowling balls, hard rubber, hard resin, acrylic, glass, cement plastic padding, printing plates, fiber, etc. Technical Parameters: Graduation: 0-100 degree Penetration performance: 0-2.5mm Fabrics indenting press A,C type 0.55N-8.06N,D type O-44.5N Package weight 0.36 kg About Package: package contents 1 x Shore Durometer 1 x user manual (English language not guaranteed). 1 x Plastic Box How to use 1. Make zero before measuring. When the durometer presses on the glass, the hand should be in the position of 100 degrees. 2. Place the sample on the stable, carry the durometer, the indenter is kept 12 mm away from the edge, press the sample with rest, have the indenter press it vertically and then read it until the end of the durometer and the sample come into full contact. 3. Measure hardness at least 5 times in different places, at a distance of at least 6 mm from sight, on average (the view of the microporous material should be kept at least 15 mm). packet

• Type A: Suitable for plastic, rubber, leather, polyester, wax, etc. of medium hardness.
• Type C: It is suitable for measuring foam, sponge, shoes with built-in material, etc.
• Type D: It is suitable for measuring hard rubber and plastics such as thermoplastics, floors and bowling balls, hard rubber, hard resin, acrylic, glass, cement plastic padding, printing plates, fiber, etc.
• The dial is clear and comfortable to read.
• The metal body, with good wear resistance and anti-corrosion.
