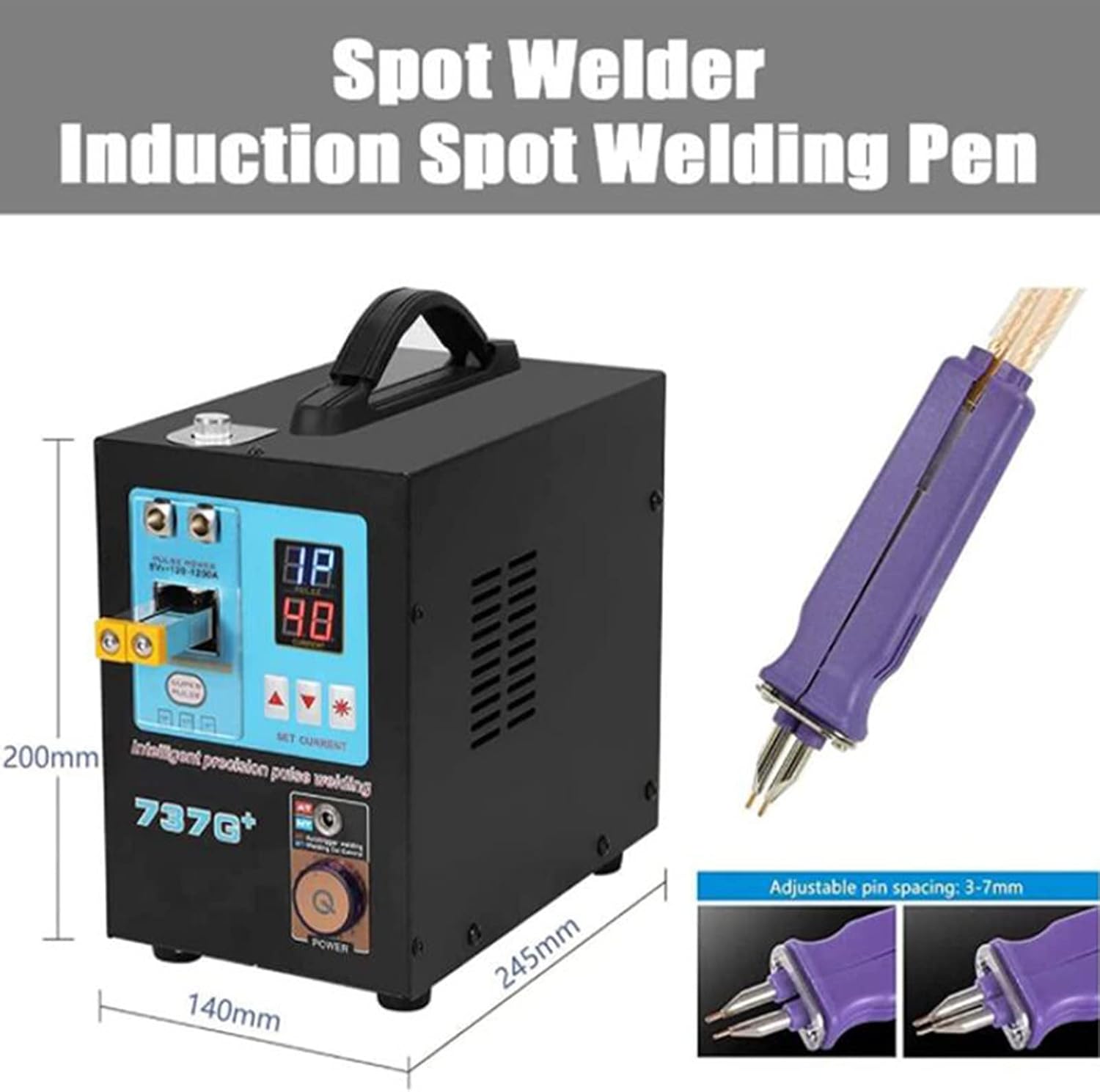

737G Pulse Battery Spot Welder – Portable Soldering Station for 18650 Lithium-Ion Battery Pack Welding, 110V-220V Dual Voltage with Wire-Controlled Foot Switch

Specification:Power: 4.3KWMaximum welding current: 1200A4 pulse time: 1ms-10ms (adjustable)6 pulse time: 2ms-20ms (adjustable)8 pulse time: 8ms-80ms (adjustable)Output voltage: 20V DCBody: 140×245×200mmWeight: 7kgFeatures:Fixed pulse spot welding enables precise fixed pulse welding.The welding pin voltage regulator is suitable for welding workpieces of different thicknesses to achieve good and reliable welding points.The compact body shape, small and portable, combined with the convenient handle, make it lightweight and easy to move.packing list:1 x main unit1 * Foot pedal1 x spot welding pen1* Nickel Plated Sheet1 x battery holder2 x Fuses1 x Hex Wrench1 * Warranty Card1 x Instruction ManualNotice:1. Please do not use a power strip, use a power socket to ensure a stable power supply, otherwise it may cause tripping.2. Set the pressure regulator to the correct value to avoid poor welding results.3. Please keep the surface of the soldering pin clean and wipe off the oxide layer with sandpaper.

• AUTOMATIC SPOT WELDING MODE – After switching to welding function, spot welding activates automatically without a remote foot pedal. Simply touch the two welding pen tips to the metal for 1 second, and the weld starts instantly – fast and hands‑free.
• DUAL WELDING CONFIGURATIONS (FIXED & MOVABLE) – Fixed welding head handles 0.1–0.35mm nickel‑plated strip or 0.1–0.2mm pure nickel strip. Movable welding pin supports 0.05–0.25mm nickel‑plated strip or 0.05–0.15mm pure nickel strip for greater flexibility.
• INTELLIGENT TOUCH CONTROL PANEL – Features pulse selection and start buttons with red/blue LED indicators. Red light = automatic induction mode (AT, no foot pedal). Blue light = wire‑controlled mode (MT, foot pedal connected). Easy, labor‑saving operation.
• SMART COOLING FAN – Built‑in intelligent cooling system with a fan at the rear. Activates automatically when the internal temperature reaches the rated level, ensuring stable performance and prolonging machine life.
• WIDE APPLICATIONS – Perfect for welding lead‑nickel sheets, wire meshes, lithium‑ion batteries (including 18650 packs), circuit boards, mobile phone cameras, stainless steel parts, stainless steel meshes, button cells, and battery packs of different sizes.
