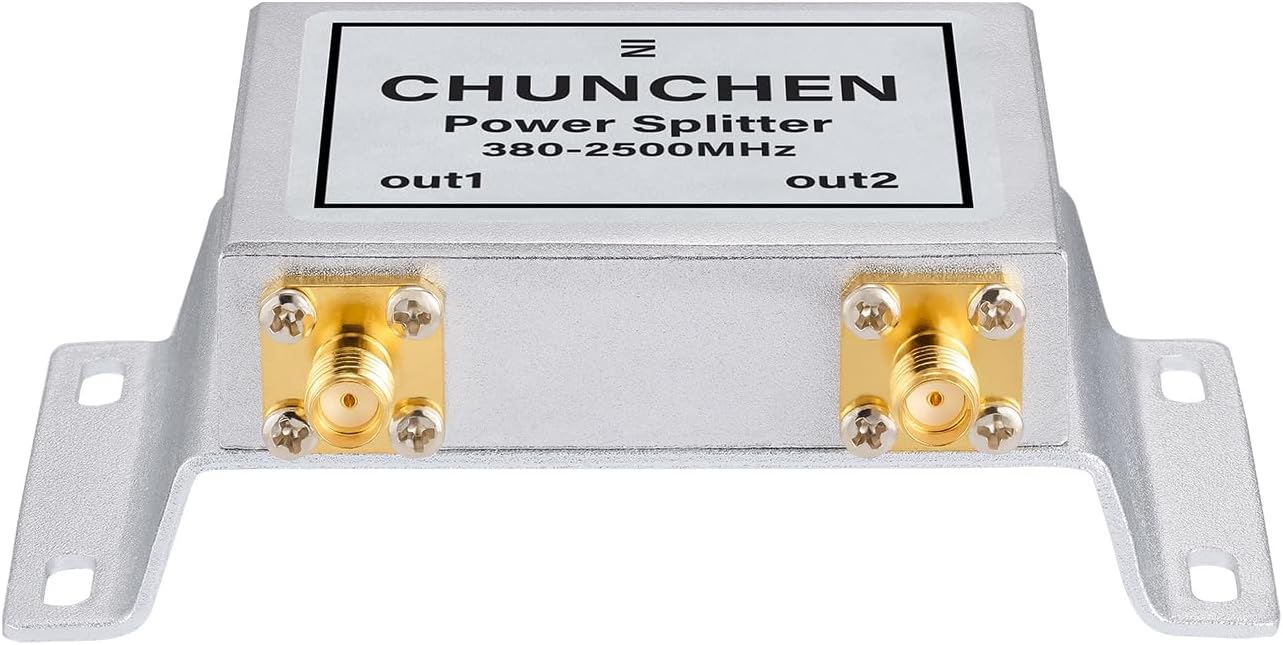

2 Way SMA Female Connector Power Splitter 50 Ohm Signal Splitter 380MHz-2500MHz Cable Signal Splitter 1 Input 2 Output for Antenna Cable

Product Details：Product name: SMA female connector 2 way signal splitter Connector port: 1 input and 2 output Output port type: 2 way Connector type(Input): SMA female Connector type(Output 1): SMA femaleConnector type(Output 2): SMA femaleProduct material(Body): Aluminum alloy Connector material: Copper Frequency range (GHz): 380-2500Mhz Inputsertion loss (dB): 3.9-5.3Isolation (dB): ≤20 VSWR: ≥1.1; ≤1.65 Amplitude balance (dB): ≤0.3 Phase balance (°): ≤5 Impedance (Ω): 50 Power capacity (W): 50 Operating temperature (°C): -30～+70 Product dimensions (cm): 9.1*6.7*3cm Package: 1 x SMA female 2 way power splitter Weight: 106.3 g

• Product name: SMA female 2 way power splitter 1 input 2 out;
• Connector port: 1 input and 2 output; Output port type: 2 way; Connector type(Input): SMA female; Connector type(Output 1): SMA female; Connector type(Output 2): SMA female; Product material(Body): Aluminum alloy; Connector material: Copper;

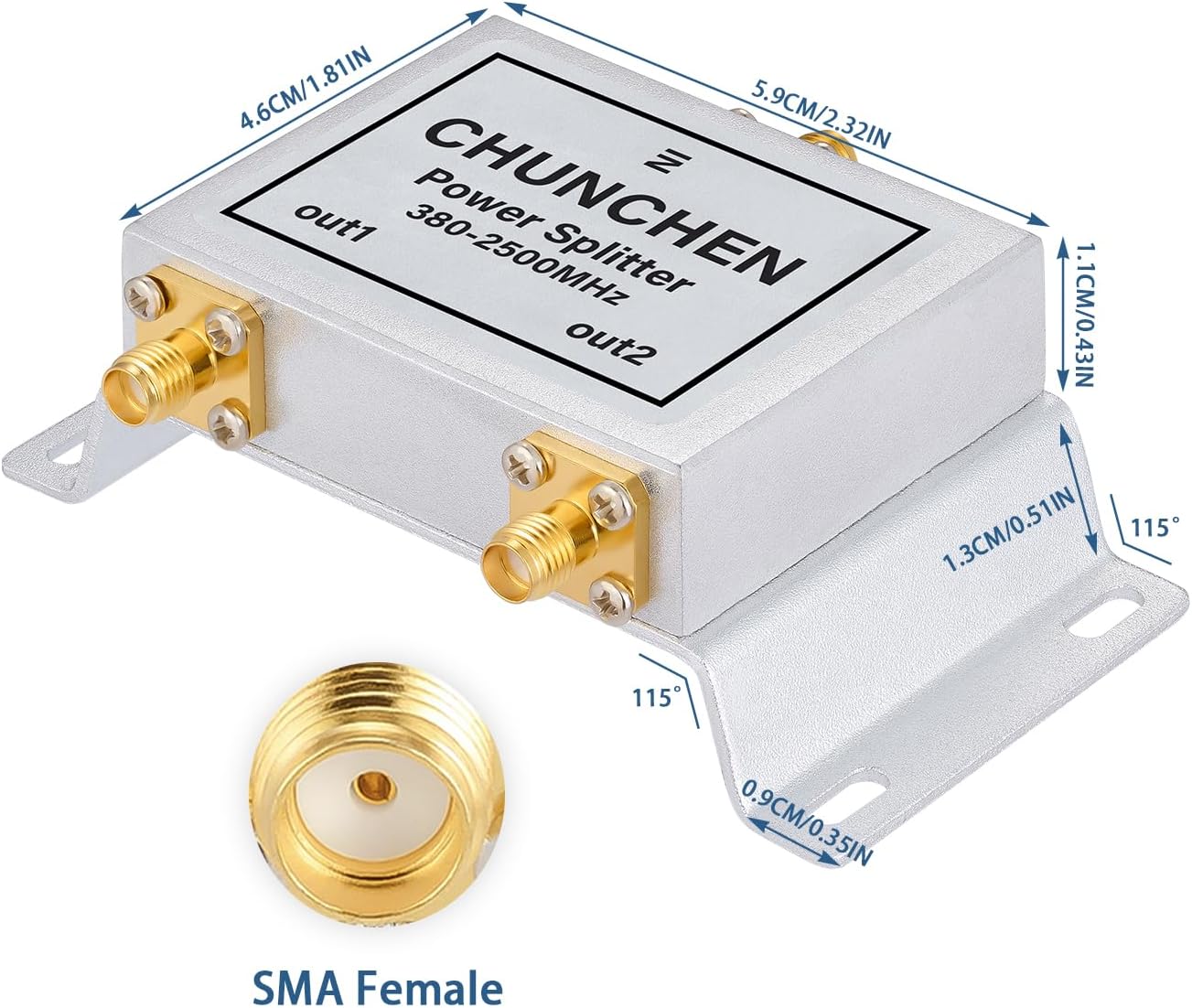

• Specification: Frequency range (GHz): 380-2500Mhz; Insertion loss (dB): 3.9-5.3; Isolation (dB): ≤20; VSWR: ≥1.1, ≤1.65; Amplitude balance (dB): ≤0.3; Phase balance (°): ≤5; Impedance (Ω): 50; Power capacity (W): 50; Operating temperature (°C): -30～+70; Product dimensions (cm): 9.1*6.7*3cm;
• Applicaion: Provides 2 amplified SMA female output ports for use with cable antenna satellite signal and so on;
• Package: 1 x SMA female 2 way signal splitter(Weight:106.3g).
